There are five exhaust manifold configurations available for Off-Highway engines.
|
1. Rear Exhaust Manifold |
3. Front Exhaust Manifold |
|
2. Fey Rings |
4. Center Exhaust Manifold |

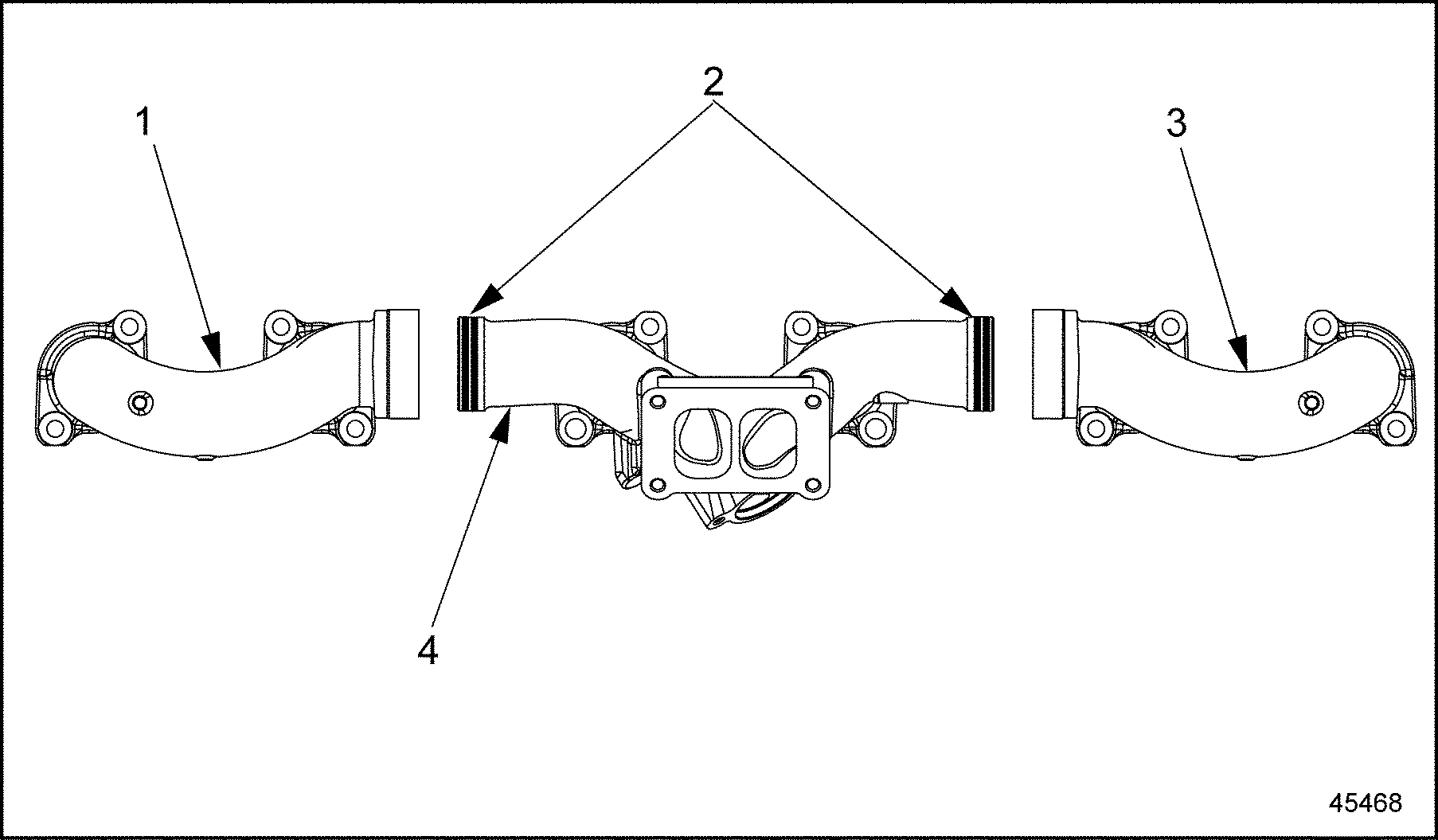

Figure 1. Standard Three-Piece Exhaust Manifold with Fey Rings
|
1. Rear Exhaust Manifold |
3. Front Exhaust Manifold |
|
2. Fey Rings |
4. Center Exhaust Manifold |

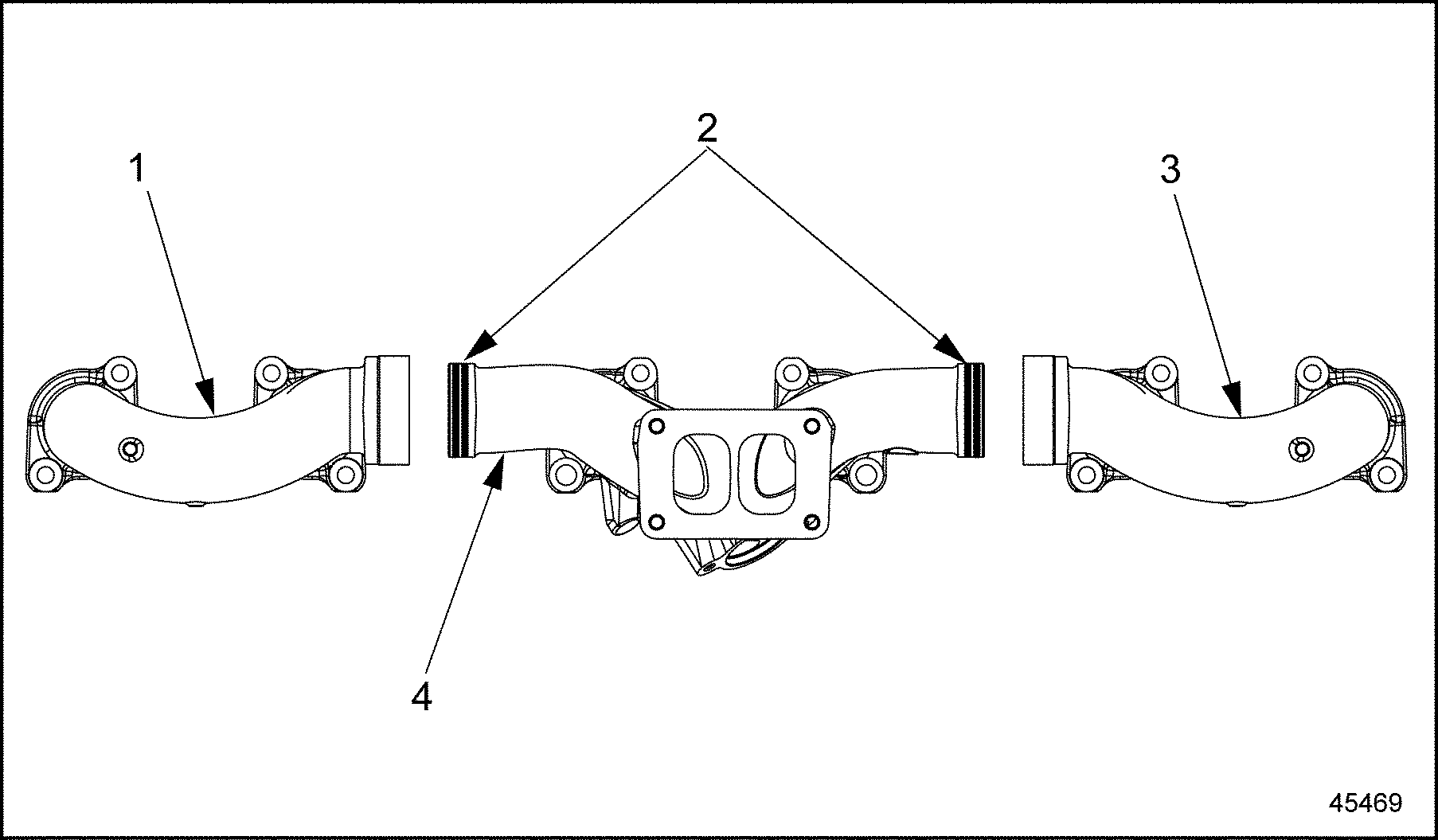

Figure 2. High Mount Three-Piece Exhaust Manifold with Fey Rings
Figure 3. Three-Piece Exhaust Manifold without Fey Rings

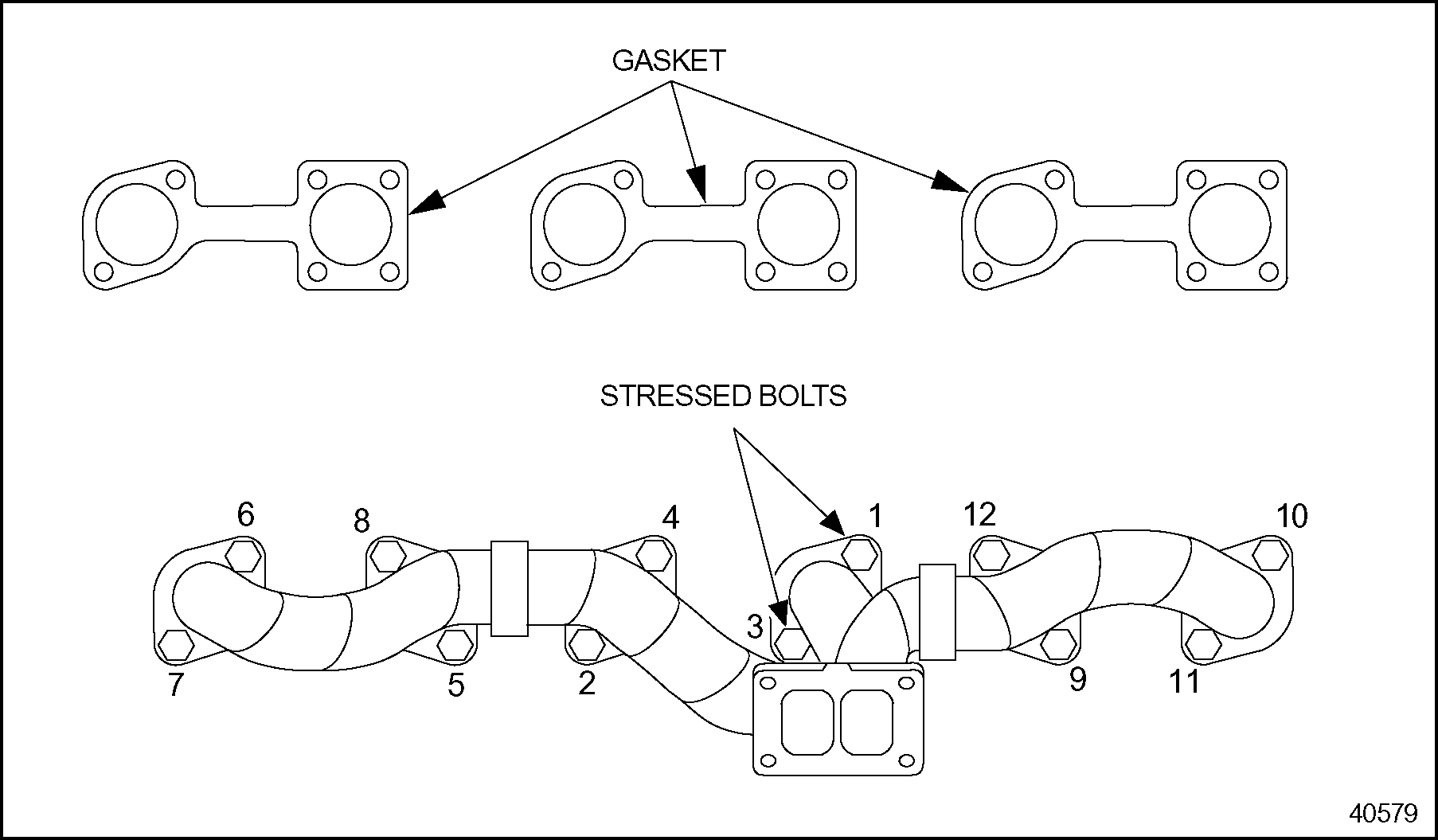

Figure 4. Three-Piece Thermal-Wrapped Exhaust Manifold and Gasket Configuration
